MILLING CNC CONTROLLER |
|

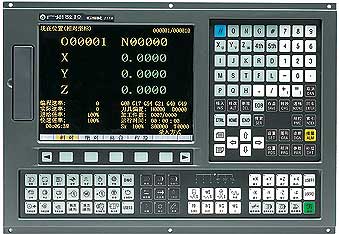

CONTROLLER 218M FOR MILLING/DRILLING SYS. NEW!!
Configuration of system is 4-axis 3 link, and the rotation axis can be set by parameters; Display 10.4 inch LCD. The max. positioning speed can reach 30m /min, and the max. interpolation speed can reach 15m /min; The system can store up to 400 programs and has the back stage edit function and can edit the program on the background
The system has the standard RS232 and USB interface which can realize the bidirectional transmission of programs, parameters and PLC programs between CNC and PC;
The system has DNC control and its baud rate can be set;
Its built-in PLC can realize the various of logic control functions; its ladder can be edit , uploaded and downloaded on-line;
Detail...
|
|
CONTROLLER 983M FOR MILLING/DRILLING SYS.
GSK 983M is a high performance CNC developed especially for high speed, high precision and high efficient machining. Controlled, link axis: up to 5 feeding axes, 1 spindle, and 4 axes to link Least input increment 0.001mm /metric 0.0001inch/inch Max. traverse rate: 240 , 000mm /min or 9 , 600inch/min Display: 7.5inch 640 x 480 homochrome LCD screen More than 300 alarm numbers T2 digit/T4 digit, 99 groups tool offset DNC function: Serial DNC to connect U disc Powerful built-in PLC
Detail... |
|

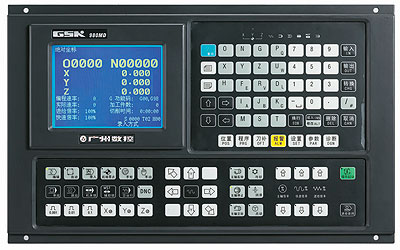

CONTROLLER 980 M FOR MILLING/DRILLING SYS.
High-speed CPU, programmable PLD, hardware interpolation, real high-speed μm grade control. 4 layers main board, high integration, reasonable construction & techniques, super reliability. English/Chinese LCD display, friendly interface, convenient operation.
Exchangeable speed-up/down time suitable for servo or step driver. Adjustable electronic gear ratio
Detail... |
|
CONTROLLER 928 MA FOR MILLING/DRILLING SYS.
English/Chinese LCD display 4controllable Axes: X, Y, Z, axis and additional C axis 4 axes linear interpolation,2 axes arc interpolation axes tapping 22 kinds of milling, drilling, tapping cycle dictate Parameters programming suitable for special purpose Optional DNC function to finishing complex machining with CAM Changeable shifting time fitting in with servo or step driver system Actual adjustable feed speed ratio Optional electronic hand wheel
Detail... |
LATHE CNC CONTROLLER |
|

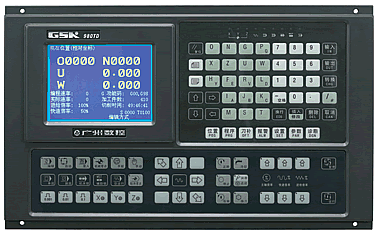

CONTROLLER 980 TD FOR TURNING SYSTEM
Controllable axes: 2(X, Z); simultaneous controllable axes: 2 (X, Z). Tapping to machine metric/inch single/multiple straight. Dimension for programs: -9999.999 ~ 9999.999mm ; min. unit: 0.001mm. Rapid traverse speed: max. 16000mm /min(option: 30000mm /min) Rapid override: time real tuning F0 , 25% , 50% , 100%. 28 kinds of G instructions: G00, G01... Most 32 tool selections ** build in PLC. Display: 320 × 240 lattice. Bidirectional communication for programs and parameters between CNC and PC, CNC and CNC. 6144KB,384 part programs memory capacity.
Detail... |
|
CONTROLLER 928 TC FOR TURNING SYSTEM
Controllable/Linkage axes 2 axes ( X , Z axis ). Min. setting unit 0.001mm. Max travel 7999.999. Max move speed 15000mm /min. 320×240 lattice, tool-trail graphic display. 4 grades control or 0 ~10V simulate control. Tool numbers 4 ~ 8 positions. Move ratio 25%,50% , 75% ,100%, adjustable. Feed ratio 0% ~ 150%, 16steps, adjustable. Electro-hand wheel is optional. 375 ×200×118mm /420 ×260×123.5mm (small/large).
Detail...
|
