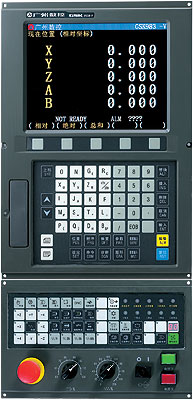

GSK 983M-S                                               GSK 983M-V



Introduction

GSK 983M is a high cost-performance and high reliable CNC developed especially for high speed, high precision and high efficient machining. Due to the applied high speed micro processor and high speed and precision servo system as well as sufficient CNC and high speed PLC functions, the machining efficiency has truly realized a higher standard.

High precision machining

The high precision and high resonance position control has been realized by high performance position closed loop control chip and high precision position detecting components.

The mechanical errors in transmission chains such as pitch error of ball screw can be remedied by pitch memory error compensation.

Feedrate override can be automatically adjusted in the corner contour machining.

High speed machining

When the system resolution is 1micon-m, the highest feedrate can reach 240m /min which is suitable for the control of milling press, MCs, engraving machines and super precision machine tools. The continuous high speed machining of micro block is realized by the distributed processing of multi-high speed CPU. The super processing capability of 1000 instruction words per second is especially suitable for the machining of high speed mould, auto parts and the control of woodworkers and laser machines.

High speed DNC functions

The specially developed high speed DNC buffer interface realizes the high speed DNC machining by the connection to PC or U disk at the baud rate as high as 115200 .

Sufficient control functions

It has the functions of maximum 5 feeding axes plus 1 spindle control, cutting tools life management, scaling, coordinate system rotation, complex canned cycle, background editing, graphics display and special user macro program that can easily carry out some special machining.

Powerful built-in PLC

The built-in sequence control for machine and the large PLC capacity for peripherals have greatly simplified the strong power design.

PLC-A 2000 steps PLC-B 12000 steps

Smart CNC

It adopts the latest high integral FPGA, CPLD chips and surface sticking adornment techniques which greatly reduces the dimensions of the control unit. And the LCD displayer adopted realizes the thin model of display unit.

Module I/O

The module design adopts I/O unit which can be paralleled by requirement with maximum (input/output) points are 192/128. It can be fixed on the standard DIN rail to directly drive the load such as contactor, which makes the strong power design much simple and the space taken up is much more reduced.

The wires from CNC to strong power plate are much more saved through the connection of the high speed serial communication ports with CNC.

The machine operation panel

It has maximum 64 mechanical keys with a LED indicator for each. Their function specified by PLC programming and also they can correspondingly connect the switches of feedrate override, spindle override, MPG override and coordinate axis.

Separating structure:

Connect CNC by the high speed serial communication ports to save the wire.
Function parameter

NC function

Controlled axis

Controlled, link axis: up to 5 feeding axes, 1 spindle, and 4 axes to link

Interpolation method: linear(G01) , circular (G02, G03), sine(G07)

Max. stroke: metric: 99999.999mm inch :9999.9999inch



Setting increment

Least input increment 0.001mm /metric 0.0001inch/inch

Least increment : X axis : 0.001mm / metric 0.0001inch/ inch

Y axis : 0.001mm / metric 0.0001inch/ inch

Z axis : 0.001mm / metric 0.0001inch/ inch

Max. traverse rate

240 , 000mm /min or 9 , 600inch/min

Max. feedrate

G94 : 150,000mm /min or 60 , 000.00inch /min

G95: 2 , 000.00mm /r or 200.0000inch/r

Automatic acceleration/deceleration: Execute the linear acceleration/deceleration to shorten the positioning time when automatically rapid feeding in Jog or Auto mode

Automatic acceleration/deceleration in cutting feed: automatic acceleration/ deceleration for cutting feed or manual continuous feed index, parameter setting the time constant from 8ms to 4000ms.

Buffer register: advance to read the instructions of the following two blocks to eliminate the interruption of NC instruction caused by reading the instructions to improve the working efficiency.

MSTB function

Tool function T : • T2 digit/T4 digit • 99 groups tool offset • tool position offset ?tool length compensation

• tool radius compensation B/C • communication input of tool offset value

• tool length measure • tool life management

Spindle function S : • S2 digit/ S4 digit A(12 digit BCD output /analog output) • S4 digit B(12 digit BCD output/analog output )( 4-grade gear input ) • max. spindle speed limit.

auxiliary function M : specified by the sequential 2 digits after address M. End

of program : M02 • M30 , program stop : M00 , optional stop : M01 , subprogram call : M98 , end of subprogram : M99. Other M functions can exclusively be defined by user.

The second auxiliary function B: it is specified by the sequential 3 digitals behind B,

BCD signal of the three digitals are transmitted to the machine side.

The function is used for the positioning of graduation worktable.

Precision compensation

?stored pitch error compensation: compensate the error caused by machine position to improve the processing precision and the compensated data is stored to the memory.

ก๑backlash compensation: compensating the loss momentum of machine

Tool length compensation and tool nose radius compensation : the tool length is specified by G codes ( G43 , G44 , G49 ) .

• tool nose radius compensation (G40 , G41 , G42), the compensation value for every tool is stored to the memory.

Max. compensation value: ± 999.999mm or ±99.9999inch.

Reliability and safety

• emergency stop ; • overtravel ; • stored stroke limit ; • NC ready signal ; • servo ready signal ; • MST functional completion signal ; • starting signal in automatic run ; • signal in automatic run ; • feed hold indicator signal ; • safety door interlock ;

NC alarm : • program error and operation error ; • overtravel error ; • servo system error ; • connection error, MDI data transmission error between, PMC error ; • memory ( ROM and RAM ) error ;

More than 300 alarm numbers to the stable operation and troubleshooting for the system.

Self-diagnosis: check the followings : • system abnormity ; • position control abnormity ; • servo system abnormity ; • CPU abnormity ; • ROM abnormity ; • RAM abnormity ; • MDI/machine operation panel data transmission ; • RS232 read abnormity ; • PC data transmission abnormity ; and so on.

Operation

• dry run • interlock • single block • optional skip block • manual absolute value ON/OFF • auxiliary function lock(M. S.T lock)

• machine lock • feed hold • cycle start • overtravel release • emergence stop • external reset signal • external power supply ON/OFF • manual continuous feed • incremental feed • MPG • skip • additional optional block skip • rapid feed overshoot • manual insertion function • sequence number search • program number search • external workpiece number research • external data input • sequential number comparison stop • program start again • menu switch • graph display • external position display

Display

• 7.5inch 640 • 480 homochrome LCD screen ?machine coordinates, absolute coordinate, incremental coordinate, distance to move

• user program • current operation mode • system parameter, diagnosis number, alarm number, macro variable value, tool offset setting, MDI command, MST

State • actual federate, spindle speed • machining path graph

• Run time and other NC instructions and state information

PMC function

Control method : cycle running; run speed:30us/step for basic instruction

Input/output : 192/128 ; 5000 steps

Development method: PMC instruction or ladder diagram

Instruction amount: 34 including 12 basic instructions and 22 function instructions

DNC function Serial DNC to connect U disc

Support Manual

Controller 983M for milling/ drilling manual


Table 2.13 G code list

G codes

Group

Function

G00

01

Positioning

G01

Linear interpolation

G02

Circular interpolation (CW)

G03

Circular interpolation (CCW)

G04

00

Dwell

G05

High-speed continuous cutting mode

G07

Federate sine curve control

G09

00

Exact stop check

G10

Offset value setting, start of registration of tool life management data

G11

00

End of registration of tool life management data

G17

02

XY plane selection

G18

ZX plane selection

G19

YZ plane selection

G20

06

Input in inch

G21

Input in mm

G22

04

Stored stroke limit ON

G23

Stored stroke limit OFF

G27

00

Reference point return check

G28

Return to reference point

G29

Return from reference point

G30

Return to 2 nd , 3 rd , 4 th reference point

G31

Skipping cutting

G33

01

Thread cutting

G40

07

Cutter compensation cancel

G41

Cutter compensation left

G42

Cutter compensation right

G43

08

Tool length compensation + direction

G44

Tool length compensation - direction

G49

Tool length compensation cancel

G45

00

Tool offset increase

G46

Tool offset decrease

G47

Tool offset double increase

G48

Tool offset double decrease

G50

11

Scaling off

G51

Scaling on

G54

12

Workpiece coordinate system 1 select

G55

Workpiece coordinate system 2 select

G56

Workpiece coordinate system 3 select

G57

Workpiece coordinate system 4 select

G58

Workpiece coordinate system 5 select

G59

Workpiece coordinate system 6 select

G60

00

Single directional positioning

G61

Exact stop check mode

G62

13

Automatic corner override

G64

Cutting mode

G65

00

Custom macro simple call

G66

14

Custom macro modal call

G67

Custom macro modal call cancellation

G73

09

Peck drilling cycle

G74

Counter tapping cycle

G76

Fine boring

G80

Canned cycle cancel

G81

Drilling cycle, spot boring

G82

Drilling cycle, counter boring

G83

Peck drilling cycle

G84

Tapping cycle

G85

Boring cycle

G86

Boring cycle

G87

Back boring cycle

G88

Boring cycle

G89

Boring cycle

G90

03

Absolute programming

G91

Incremental programming

G92

00

Absolute zero programming

G94

05

Per minute feed

G95

Per revolution feed

G98

10

Return to initial point in canned cycle

G99

Return to R point in canned cycle
